Residential load calculations are one of the most time-consuming parts of electrical permitting. Between NEC 220.82 for the dwelling unit, 625.42 for EV charger loads, and 705.12 for solar PV interconnection, the math is straightforward but the lookups and cross-references eat up hours you could spend on billable work.
We built the NEC 220 Load Calculator to solve that. It's a single Excel spreadsheet that handles all three calculations, walks you through every input, shows you the NEC code reference for each formula, and produces a clean summary sheet you can attach to your permit application.
What the Calculator Covers
The workbook contains seven tabs, each designed to move you from inputs to a permit-ready summary without switching between code books or scribbling on scratch paper.
| Sheet | What It Does |
|---|---|
| Start Here | Instructions, color key for input vs. output cells, and quick-start guide |
| 1. Inputs | Enter dwelling square footage, appliance loads, HVAC tonnage, and service details. Orange-bordered cells are your inputs; everything else calculates automatically. |
| 2. Load Calc (220.82) | Full NEC 220.82 Optional Method calculation for dwelling units. Applies the first 10 kVA at 100% and remainder at 40% per the code. Includes general lighting, small appliance circuits, laundry, fixed appliances, and HVAC loads. |
| 3. EV Load (625.42) | EV Supply Equipment continuous load calculation per NEC 625.42. Applies the 125% continuous load factor, calculates circuit and breaker sizing, and flags panel capacity issues before you pull the permit. |
| 4. Solar PV Check (705.12) | NEC 705.12(B)(3) load-side interconnection check. Validates the 120% busbar rule to confirm the solar array can connect to the existing panel without a service upgrade. |

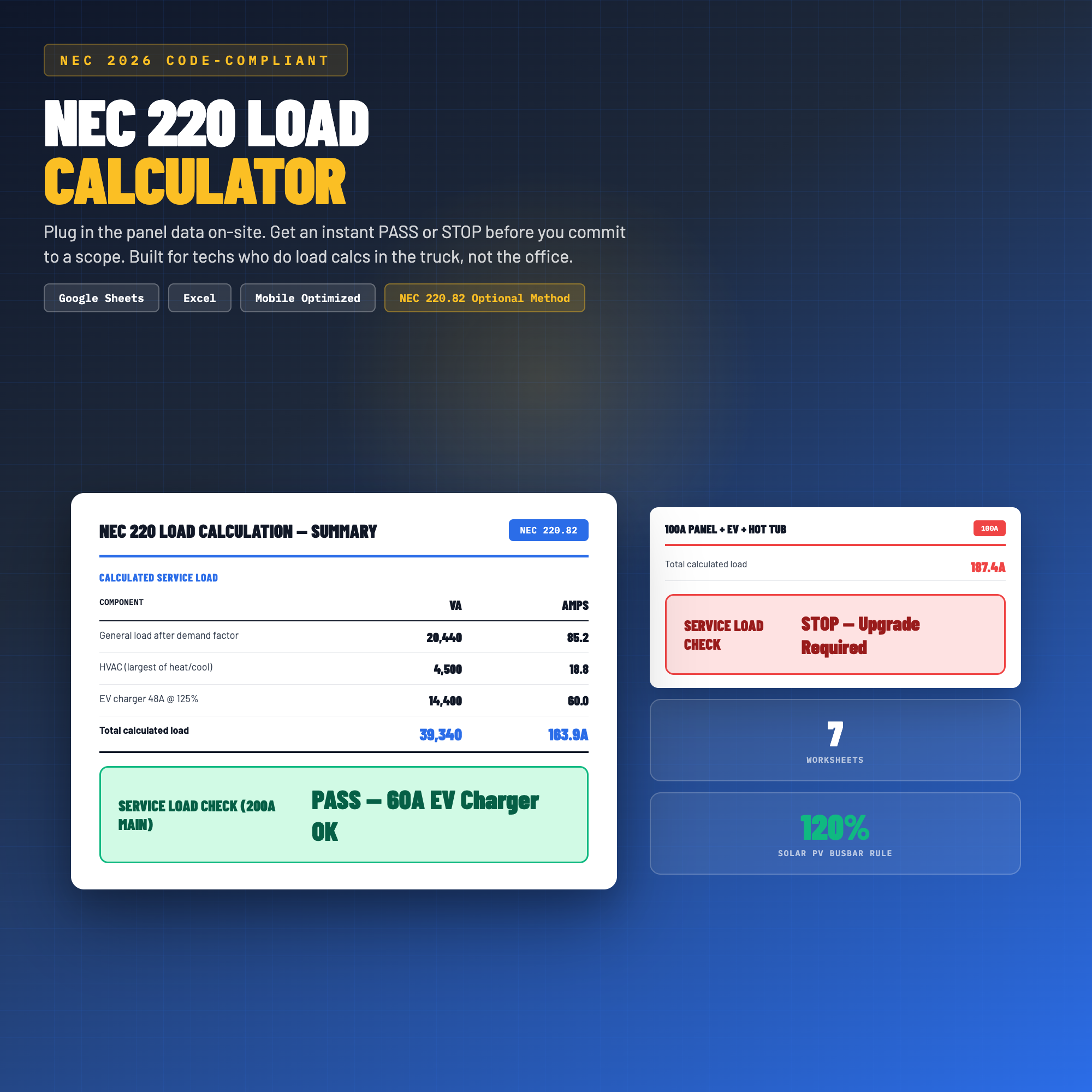

| 5. Summary | One-page printable summary with total calculated load, panel capacity, EV impact, solar PV interconnection status, and pass/fail indicators. Attach this to your permit package. |
| Code References | Every formula in the workbook is linked back to its NEC article and section. Useful for AHJ questions or when a plan reviewer asks how you arrived at a number. |
Who This Is Built For
This calculator was designed for professionals who run residential load calculations regularly and need a faster, more reliable workflow than pen-and-paper or generic online tools.
- Licensed electricians doing panel upgrades, service changes, or new construction rough-ins
- Solar installers who need to verify 705.12 interconnection compliance before submitting permit packages
- EV charger installers sizing circuits and confirming panel capacity for Level 2 EVSE
- Permit runners and plan reviewers who need a standardized, auditable calculation format
- Electrical contractors who want to hand their apprentices a reliable tool instead of a blank worksheet
How It Works
Step 1: Open the workbook and go to the "Start Here" tab. The color key explains which cells accept input (orange borders) and which are formula-driven (locked).
Step 2: Fill in the "Inputs" tab with the dwelling details: square footage, number of small appliance circuits, fixed appliances, HVAC system specs, and existing service size.
Step 3: The "Load Calc" tab automatically applies the NEC 220.82 Optional Method. The first 10 kVA of general load at 100%, remainder at 40%. HVAC loads use the largest motor or heating element per 220.82(C). No manual lookups needed.
Step 4: If the project includes an EV charger, the "EV Load" tab calculates the 125% continuous load factor per 625.42 and shows you whether the existing panel can handle the additional breaker.
Step 5: If the project includes solar PV, the "Solar PV Check" tab runs the 120% busbar rule calculation per 705.12(B)(3). It tells you whether a load-side interconnection is code-compliant or whether the customer needs a service upgrade.
Step 6: Print or export the "Summary" tab. It pulls all results into a single page with pass/fail indicators. This is the sheet you attach to your permit application.
Get the NEC 220 Load Calculator
Seven-tab Excel workbook covering NEC 220.82, 625.42, and 705.12 calculations. Fill in your inputs, get a permit-ready summary. Instant download after purchase.
Get the Calculator — $19Why a Spreadsheet Instead of an App
There are online load calculators, but most electricians we've talked to prefer spreadsheets for a few practical reasons:
- Works offline. Job sites and permit offices don't always have reliable internet. An Excel file works on your laptop, tablet, or phone without a connection.
- Auditable. Every formula is visible. When a plan reviewer questions a number, you can show them the cell formula and the NEC reference, not a black-box "the app said so."
- Reusable. Save a copy for each project. You build a library of completed calculations you can reference later or hand to your apprentice as training examples.
- No subscription. You buy it once, you own it. No monthly fee, no login, no account to manage.
What's Included in the $19 Download
- NEC 220 Load Calculator workbook (.xlsx) with 7 tabs
- Pre-built formulas verified against NEC 220.82, 625.42, and 705.12(B)(3)
- Color-coded input cells with cell-level instructions
- Printable summary sheet formatted for permit submission
- Code reference tab with article and section citations for every formula
- Works in Microsoft Excel, Google Sheets, and LibreOffice Calc
Upgrade path: When you're ready for the full Solar & EV Infrastructure Admin Kit ($97), your $19 purchase is credited toward the upgrade. You'll receive a discount code in your download delivery email.
Stop Doing Load Calcs by Hand
The NEC 220 Load Calculator handles residential dwelling units, EV charger sizing, and solar PV interconnection checks in one workbook. Instant download, no subscription.
Download Now — $19Frequently Asked Questions
Which version of the NEC does this follow?
The formulas are based on the current NEC code cycle. The Code References tab cites every article and section used. Always confirm your local jurisdiction's adopted code edition before submitting, as some AHJs may still enforce an earlier cycle.
Does this work for commercial buildings?
No. This calculator is designed for residential dwelling units under NEC 220.82 (Optional Method). Commercial load calculations follow different articles (220.12, 220.14, 220.44, etc.) and are not covered here.
Can I use this in Google Sheets?
Yes. The workbook opens in Google Sheets with full formula support. Upload the .xlsx file to Google Drive and open it with Google Sheets. Some formatting may shift slightly, but all calculations work.
Does this replace a licensed engineer's stamp?
No. This calculator is a reference tool designed to assist licensed professionals with their own calculations. It does not replace engineering judgment, a Professional Engineer's stamp, or any jurisdiction-specific review process. See the full disclaimer below.
What if my AHJ requires a different calculation method?
Some jurisdictions require the Standard Method (NEC 220.40) instead of the Optional Method (220.82). This calculator uses the Optional Method only. Check with your local Authority Having Jurisdiction before submitting.
